Switch Sheet Metal Manufacturing

As a China Manufacturer & Supplier & Factory integrating R & D, production and processing and technical services, Xinyang has long provided customized Switch Sheet Metal shells for communication equipment, data center and network equipment brands, covering outdoor communication boxes, indoor switch cabinets, carrier-specific cabinets, power supply cabinets and server shells.

Switch Sheet Metal Manufacturing  refers to the precision manufacturing of structural parts such as switch housings, network communication cabinets, and electric control boxes through metal laser cutting, CNC bending, stamping, welding, and surface treatment.

Features:

High heat dissipation, high structural stability, precise hole position matching, electromagnetic compatibility requirements, high surface corrosion resistance, dust prevention and waterproof treatment, customized structure design. As a professional manufacturer with long-term service in the communication industry, Xinyang can provide one-stop processing from structure design, prototyping, small batch trial production to mass production.

Advantages

1. More than ten years of deep cultivation in the industry·Service communication, electronic control and data center fields Since its establishment in 2016, Xinyang has successfully become:

Korea TOVIS Beijing Li Hua Lai Kang China Telecom opened a biomedical brand to provide long-term sheet metal supply services.

2. 6000㎡ modern chemical plant· 100+ sets of professional equipment from cutting, bending, welding to spraying, one-stop processing capacity to ensure stable quality, controllable delivery, controllable cost.

3. Advanced equipment to ensure high precision laser cutting tolerance: ±0.005mm Bending tolerance: ±0.1mm 4. Production systems that meet international standards are strictly enforced:

ISO 9001 ISO13485 ensures reliability, safety and consistency of Switch Sheet Metal Manufacturing products.

5. Powerful material adaptation for:

Aluminum alloy galvanized steel plate cold rolled stainless steel alloy material and can be carried out according to needs:

Spray anodization heat treatment silk screen laser engraving to meet the needs of different application scenarios.

Application scenarios

1. Outdoor Switch Enclosures

Function:

Waterproof, dustproof, anti-corrosion, sunscreen structure is stable, can withstand wind and rain and high and low temperature changes Protection level up to IP55~IP66

Typical structure:

1.5mm galvanized steel plate main body 2.0mm bottom support double-layer sheet metal structure + phenolic insulation plate excellent EMC performance

Application scenarios:

5G/4G communication base station access network node outdoor weak current box intelligent transportation system

Results:

Extend equipment life Protect internal circuits from harsh environments Reduce maintenance frequency and cost

2. Indoor Switch Cabinets Function:

Reasonable internal wiring Compact structure Easy maintenance, easy installation Application scenarios:

Data Center IDC Room Building Weak Current Room Network Cabling Room

Results:

Improve space utilization Reduce installation engineering time Improve cabling efficiency and stability

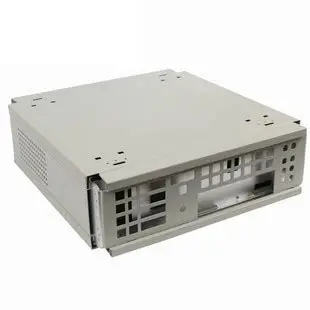

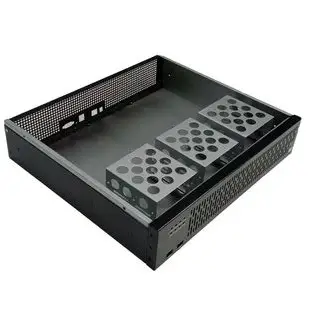

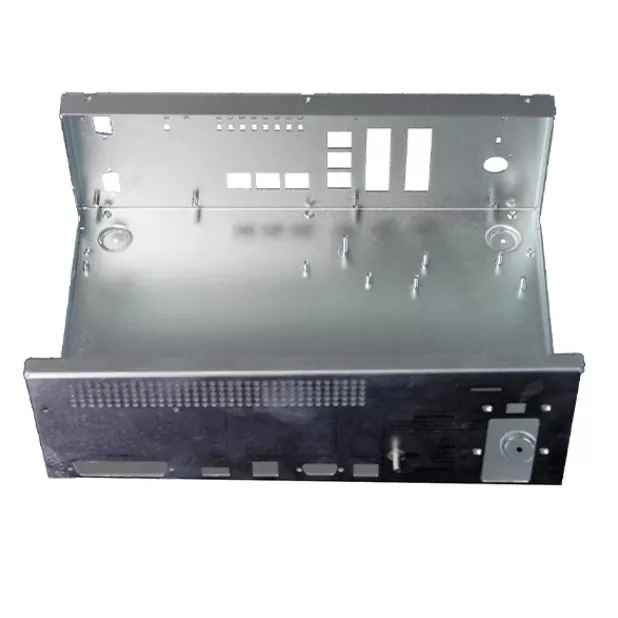

3. Server Switch Sheet Metal Parts

Features:

High strength, anti-deformation precision hole matching motherboard and interface excellent heat dissipation structure design

Results:

Improved equipment stability Improved thermal performance Enhanced EMI/EMC performance

Technological process

1. Fiber Laser Cutting

Germany imported laser power: 2000W Cutting range: 1250mm × 3000mm Cutting thickness: 0.15 - 10mm

Effect:

Slag less precision high cutting edge smooth

2. CNC Bending

Mitsubishi servo system Bending length: 2000mm Plate thickness up to: 8mm Tolerance: ±0.1mm

Advantages:

High consistency of molding stability structure

3. Hydraulic Forming Custom bench suitable for large size switch panel molding

Features:

Uniform pressing speed for precise control of forming depth

4. Stamping/tapping/riveting process

Includes:

Tapping machine Riveting machine Riveting machine Punching equipment

Ensure that:

Thread precision riveting strength high hole consistency stability

5. Welding process (TIG / MIG / Spot Welding)

Adapting network equipment shell structure enables seamless welding and high strength welding

6. Surface treatment (Finishing)

Optional:

Electrostatic spray anodizing plating wire drawing screen printing

Have:

Corrosion resistance Scratch resistance Long-term protection

Product Parameter

Faq

1. Can you customize the switch chassis according to the drawings?

Very good. Letter Yang support:

To map the custom sample custom structure to assist the development and can provide 3D modeling, structure optimization advice.

2. Can you do small batch production?

Very good.

ShineYoung has flexible processing lines that support:

Proofing small batch trial production in large quantities suitable for start-up brands, R & D departments, equipment manufacturers.

3. How to ensure the accuracy of the switch sheet metal parts?

Based on the following systems:

Imported laser cutting equipment Japanese CNC bending machine three yuan and 2.5 yuan testing equipment ISO9001/13485 quality system multi-channel quality inspection process to ensure stable accuracy.

4. Can I choose from different finish colors?

Very good.

Provide:

Black, White, Grey, Sand, Matte, Metallic Custom Pantone color number to meet branding needs.

5. How to guarantee the delivery date?

Shin Yang has:

6000㎡ factory 100+ equipment independent spraying line forming, welding one-stop processing

To ensure that the project from processing to surface treatment all completed internally, significantly reduce the delivery time.

Why choose Xinyang?

✓ Over 10 years of industry experience

✓ Precision machining capabilities meet the requirements of the communications industry

✓ German laser machine + Japanese bending system ensures accuracy

✓ Strict quality system and comprehensive testing equipment

✓ Full OEM/ODM support

✓ Stable delivery time and competitive pricing

✓ Already a long-term cooperative supplier for many well-known companies

Xinyang is not only a processing plant, but also a long-term manufacturing partner trusted by customers.

As a professional Switch Sheet Metal Manufacturing Factory from China, Xinyang provides reliable sheet metal structure manufacturing solutions for communication equipment, server manufacturers and electronic control equipment enterprises with precision manufacturing capabilities, perfect equipment system and stable quality control.

Whether it is outdoor communication chassis, switch chassis, data center cabinet components or OEM network equipment enclosure, Xinyang can create more competitive products for customers in a fast, precise and high-standard way.

Welcome to contact Xinyang for drawing evaluation and quotation, and start cooperation in sheet metal manufacturing of high quality switches.
