Curved Sheet Metal Manufacturing

Curved Sheet Metal Manufacturing is a multi-step process that processes sheet metal into curved, curved lines or compound curved surfaces through laser cutting, CNC bending, rounding, stretching and welding.Compared with traditional flat sheet metal, curved surface structure is not only more beautiful in appearance, but also more functional, durable and space utilization.

Under the background of rapid upgrading of industrial equipment, more and more enterprises hope that the shell structure not only has a sense of design, but also can carry stable, safe and sturdy mechanical properties.Because of this, Curved Sheet Metal Manufacturing has become an irreplaceable capability for equipment manufacturing.

Machinable metal materials include:

Cold Rolled Steel Sheet (SPCC)

Hot dip galvanized sheet (SGCC / SECC)

Aluminum plate (AL5052 / AL6061)

Stainless steel (SS304 / SS316)

Alloy steel or user-specified material

Xinyang has a variety of precision production equipment, which can realize high-quality curved surface machining on different materials and thicknesses, so that products with high manufacturing difficulty and high precision requirements can also be easily landed.

Core Function

Dongguan Xinyang summed up several of the most critical functional values of curved sheet metal in different industrial applications in many years of practice:

1. Precision Curved Surface Forming Capability

Curved structures typically require:

High consistency

No workpiece deformation

Smooth bending curvature

High forming accuracy for complex contours

Relying on AMADA CNC punching machine, CNC bending machine, rounding machine and laser cutting equipment, Xinyang can realize the molding requirements of small R, large R, hyperboloid, multi-stage transition, etc., and meet the strict requirements of industrial control box, display housing, etc. for the appearance of curved surface precision.

2. Increased strength and stability

The characteristic of curved surfaces is to disperse stresses, making metal structures perform better in terms of load bearing, compression resistance, and earthquake resistance.

For industrial equipment, this means:

Higher extrusion resistance

Lower deformation risk

Longer service life

For medical equipment cabinets, industrial switch housings, electrical control cabinets and other products that require long-term high-intensity operation, Curved Sheet Metal Manufacturing can significantly improve the structural safety factor.

3. Better appearance texture, suitable for high-end equipment

The curved surface structure has a more design feel than the traditional straight shape.Curved shells are especially popular in applications where brand image and product recognition are needed, such as:

medical instruments

IT.(intelligent terminal)

High-end consumer equipment

Display equipment

Touch display terminal

Xinyang has automatic spraying line and silk screen line, which can achieve uniform color, fine surface texture and consistent luster on the curved surface structure, so that the overall visual effect of the equipment is higher.

4. Better heat dissipation structure design

Part of the curved sheet metal structure adopts a specific arc design, which can optimize the internal space layout, so that:

More reasonable arrangement of heat dissipation holes

Smoother airflow channels

Equipment temperature control is more stable

This is especially critical in industrial control boxes and communication equipment housings.

5. Modularity and assembly compatibility

Through precision CNC bending and surface forming, all hole positions, slots and structural edges can be ensured accurately, making component assembly more efficient and reducing the difficulty and risk of customers in later assembly.

Application scenarios

Curved Sheet Metal Manufacturing is widely used in all kinds of industrial equipment, combined with Xinyang's flagship products, mainly including:

1. Industrial Control Chassis

The industrial control box needs to be stable in structure, anti-seismic, dustproof and excellent in heat dissipation. The application of curved sheet metal can improve the overall strength and make the appearance more modern.

2. Switch and communication equipment housing (Network Switch Housing)

Stable heat dissipation, lightweight structure and high precision hole location are the advantages of curved surface design.

3. LCD Monitor Enclosure

The cambered shell can be visually more beautiful, so that the whole machine has more commercial value, suitable for industrial control screens, advertising machines, medical display screens, etc.

4. Power Control Cabinet

Curved edge design can further distribute stress and improve cabinet strength.

5. Medical equipment enclosures

Medical equipment pays attention to texture, stability and safety. Curved sheet metal can improve the touch and user experience of the whole machine.

6. Automatic equipment protective cover

Curved surfaces reduce the risk of sharp corners colliding with the outside world and improve safety.

Curved Sheet Metal Manufacturing Process

In order to ensure high precision and consistency of curved sheet metal parts, Xinyang adopts standardized production processes:

1. Drawing evaluation and engineering validation

STEP, IGS, DWG, PDF drawings can be

Engineers analyze structural feasibility, bending radius, welding method, surface treatment method

Provide structural optimization advice when necessary

2. Laser Cutting

Cutting accuracy up to ±0.1mm

Suitable for complex shapes and high-precision parts

3. CNC Bending

Multi-axis bending head

Repeatability up to ±0.1mm

Can process multi-segment arc curve

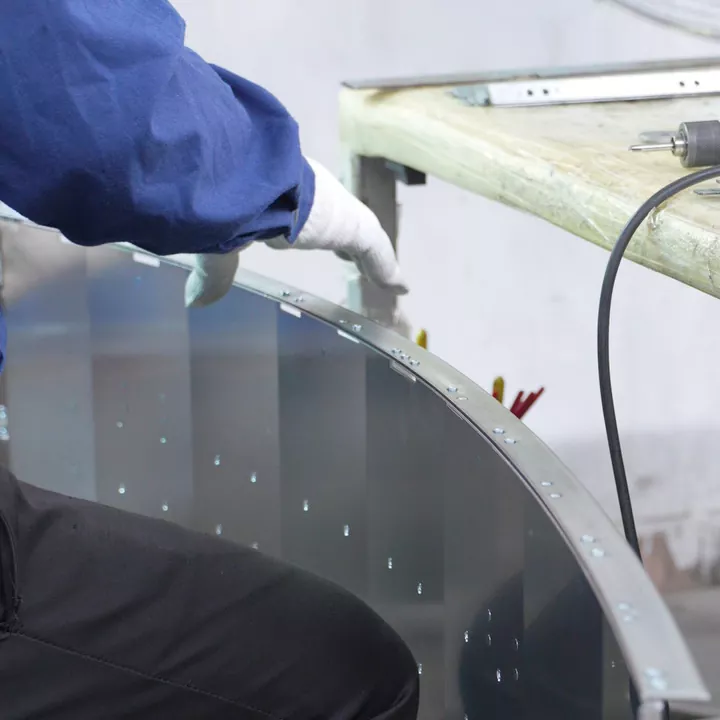

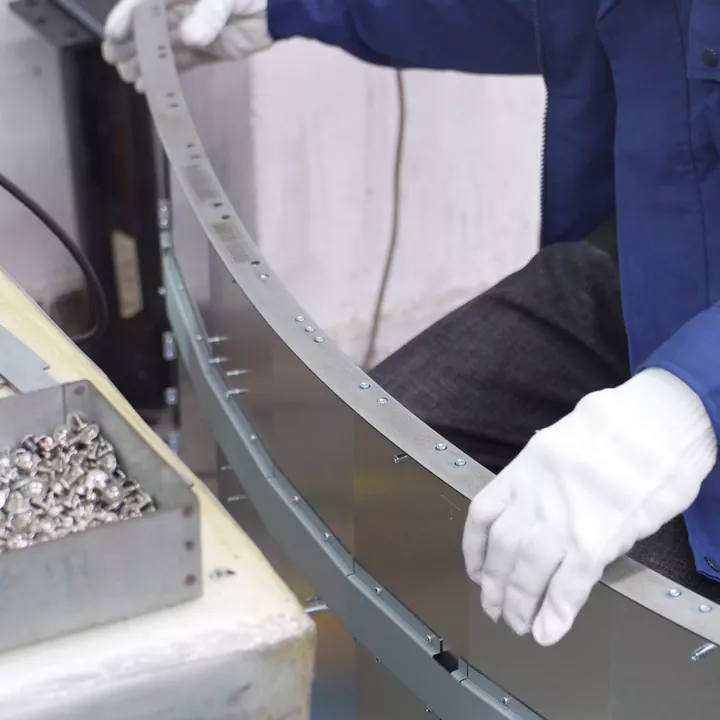

4. Rolling, Drawing, Forming

Used to manufacture:

large arc surface

circle structure

hyperboloid modeling

special shape curved part

5. Welding & Grinding

Argon welding/secondary welding/spot welding

High weld flatness

After welding, the curved surface shall be carefully polished to ensure a seamless transition.

6. Surface treatment

Select according to usage scenario:

Powder coating (automatic line)

Anodize

Electroplate

Drawbench

Silk-screen

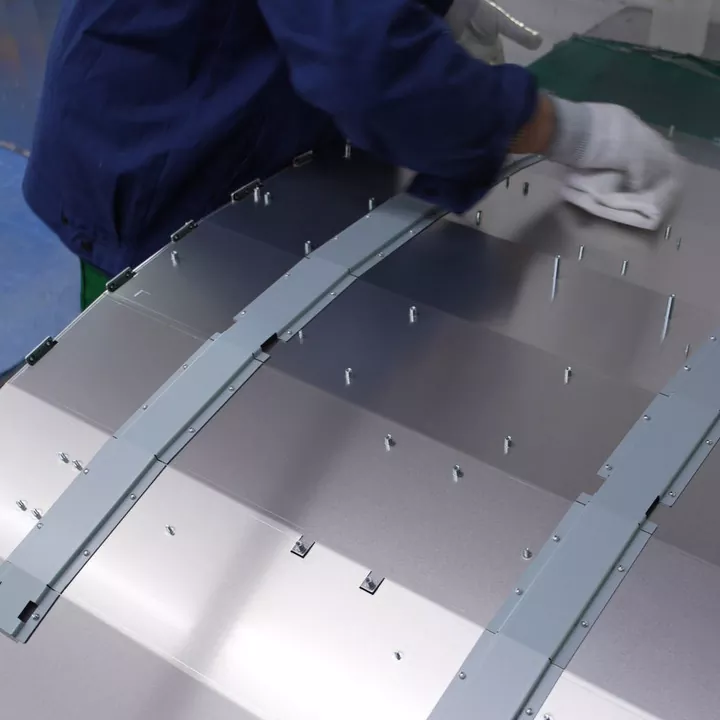

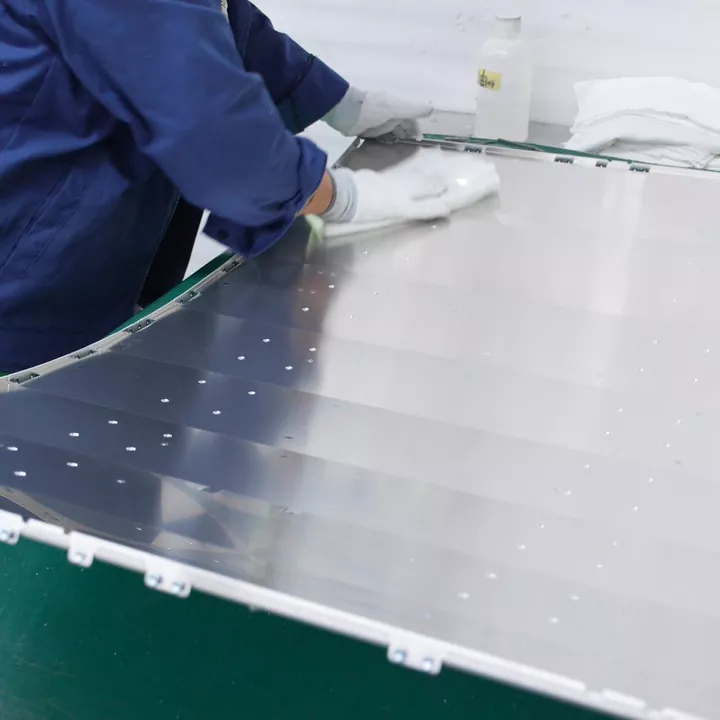

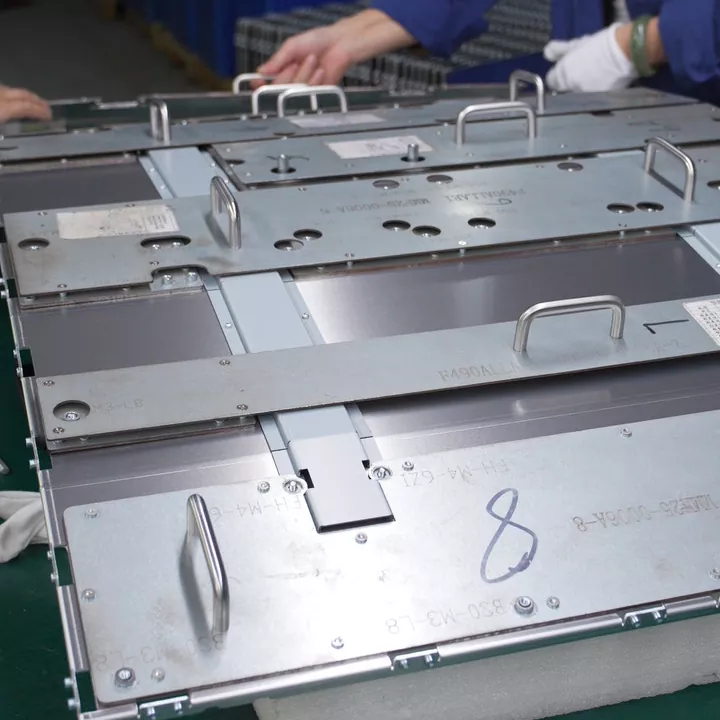

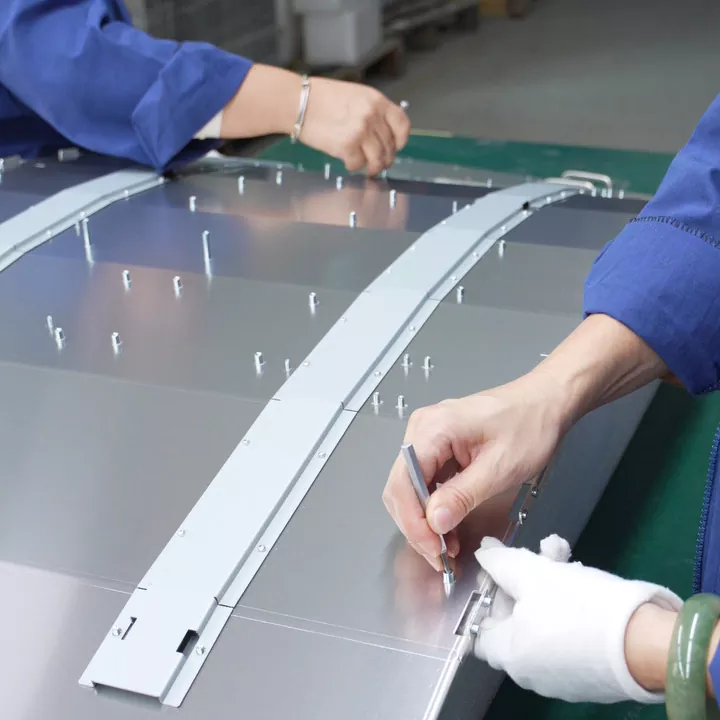

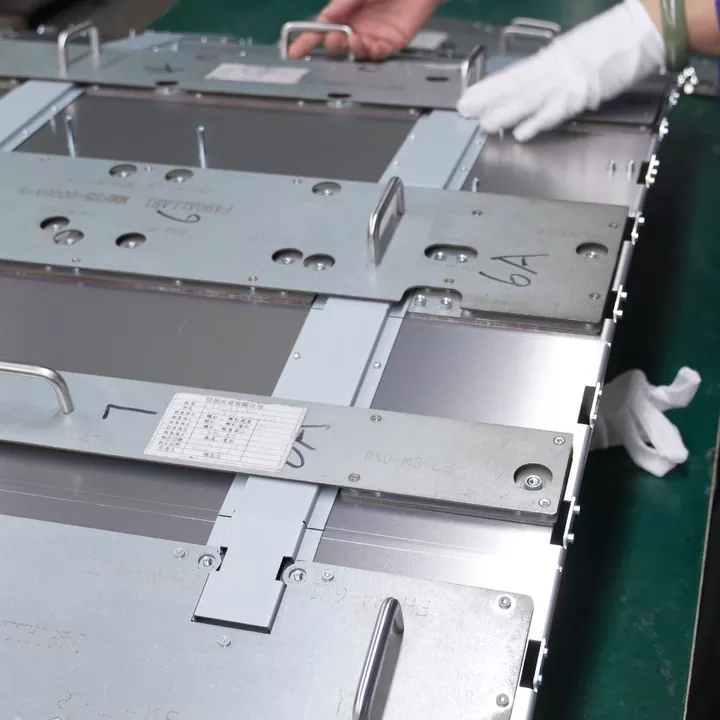

7. Assembly and testing

Hole position, structure size 100% inspection

Ensure all accessories fit smoothly

Check appearance, coating thickness, corrosion resistance

Product Specifications

These parameters cover the structural size, strength requirements and appearance requirements required by most industrial equipment.

Equipment strength and quality assurance

Since its establishment in 2016, Xinyang has adhered to stable quality, rapid delivery and perfect service as its core.The company owns:

1. Professional equipment capabilities

Amada numeric control punch

CNC bending machine (Computer Numeric Control bending machine)

laser cutting machine

Multi-type punch

automatic spraying line

Automatic screen printing line

Welding and grinding station

Multiple testing equipment (calipers, coordinates, film thickness tester, hardness tester)

These devices ensure that curved sheet metal meets high industry standards in precision, appearance and efficiency.

2. Factory size advantage

10+ years of industry experience

6000㎡ modern factory building

50+ Technicians

100+ professional processing equipment

3. Customer proof of strength

Xinyang's products have been adopted by many well-known enterprises at home and abroad for a long time, including:

Korea TOVIS

Beijing Lihua Laikang

China Telecom

Open Medical

These cooperation cases prove that Xinyang has a stable and reliable supply capacity in the field of curved sheet metal processing.

FAQ

1. Can you provide suggestions for design optimization?

The engineering team can provide structural feasibility analysis based on customer drawings and propose cost optimization and strength optimization solutions.

2. How is quality guaranteed?

IQC, IPQC, OQC full-process inspection, all finished products are subject to size and appearance testing.

3. Can you be a long-term supplier?

Xinyang has provided long-term stable supply for many international enterprises and can sign formal cooperation agreements.

4. How to calculate the price?

The price consists of the following components:

Raw material costs

process complexity

surface treatment cost

mode of transportation

We insist on transparent quotation, support long orders, mass production concessions.

Why choose Xinyang?

● Shortened R & D cycle

Quick drawing evaluation, quick sample extraction.

● Reduced procurement costs

Process optimization, material utilization rate improvement.

● Product appearance is more advanced

Surface modeling and spray uniformity meet high-end equipment standards.

● Structural strength significantly improved

Curved design makes equipment safer and more durable.

● More stable supply chain

Plant size and experience allow for greater controllability of delivery times.

● Increased market competitiveness

Better appearance, more stable structure, better quality.

Welcome global customers to discuss cooperation

As a professional surface sheet metal processing China Manufacturer, Xinyang always insists on quality as the core, reliable delivery as the basis, and professional technology to create higher value for customers.

Whether you need an industrial control cabinet, an electronic control cabinet, a display housing or any custom curved sheet metal part, Xinyang can provide high-quality solutions for your project.

Welcome to provide drawings or consult more details, we will be happy to serve you.
