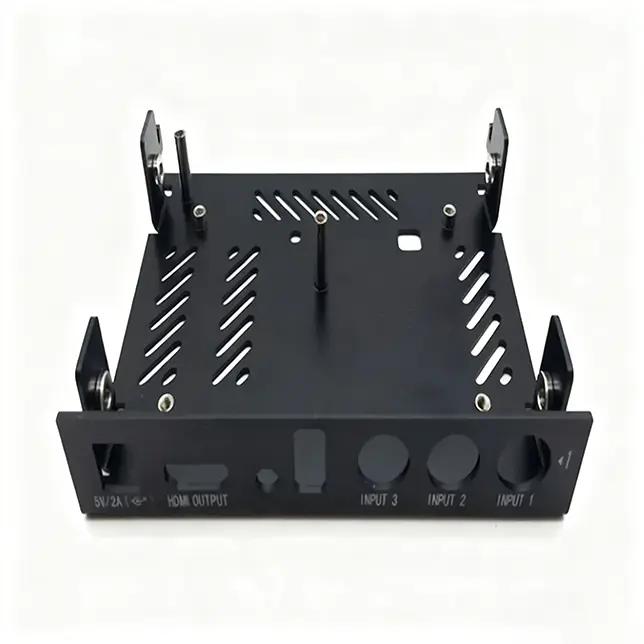

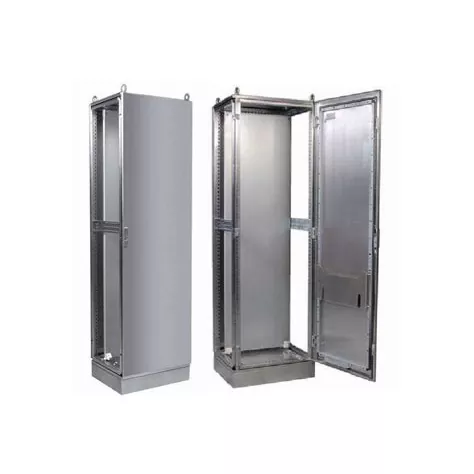

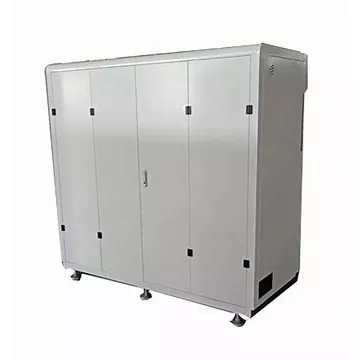

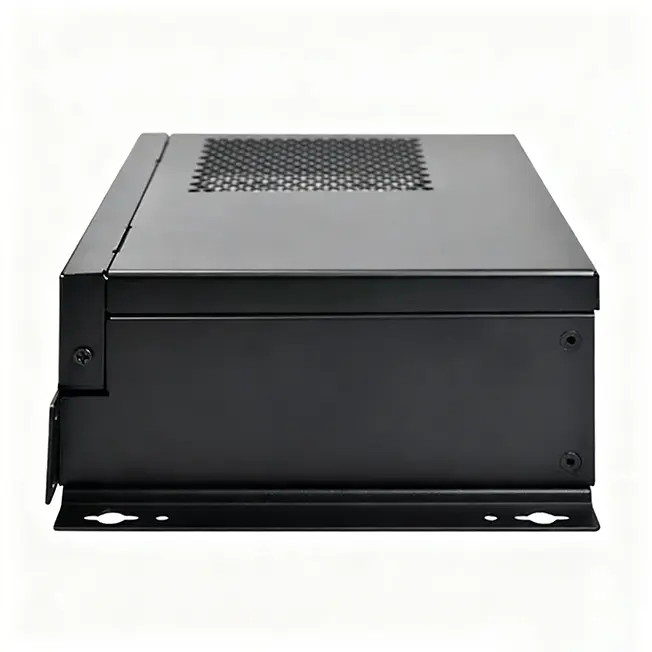

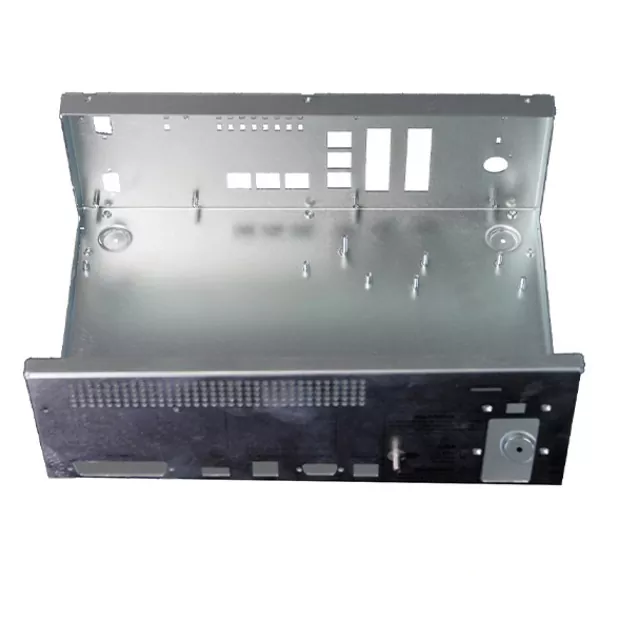

Electrical Cabinet Metal Sheet is used to produce metal sheet metal parts for power cabinets, electrical control cabinets, distribution boxes and cabinet shells. It is assembled through multiple processes such as cutting, bending, welding, tapping and spraying to protect internal electrical components from dust, corrosion, impact and external environmental interference.
The sheet metal of power cabinet produced by Xinyang has the following characteristics:
Extrusion resistance: high strength structure design, to ensure that the cabinet is not easy to deform
Corrosion resistance: powder coating/plating process on the surface to improve service life
Dust and water resistance: IP54/IP55 or even IP65 on request
Flexible mounting structure: support custom hole position, mounting plate, reinforcing rib, heat dissipation design
Fine appearance: strictly control size tolerance and surface quality to meet international customer standards
As a professional China Electrical Cabinet Sheet Metal Supplier & Factory, Xinyang can be customized according to customer drawings, from a set of product prototype development to batch orders, can provide complete services.
1. Electrical element protection function
Prevent dust and moisture from entering
Prevent external impact from damaging internal equipment
Corrosion resistant for complex industrial environments
2. Electrical system isolation and safety protection
Ground protection through sheet metal construction
Avoid personal contact with high-voltage live parts
Meets industrial safety standards
3. System cooling and ventilation function
Support customized cooling holes, louvers and fan positions
Optimize system operating temperature and improve equipment life
4. Structural support and installation functions
Internal mounting plate supports heavy equipment fixation
Solid cabinet structure, able to withstand vibration and movement
● Industrial automation control system
Industrial PLC, automatic production line control cabinet, industrial control cabinet.
● Power and Energy Industry
Power distribution cabinet, UPS cabinet, inverter control cabinet, outdoor power box.
● Communication and network industry
Network switch cabinet, indoor and outdoor communication box, protective cabinet.
● Medical equipment housing
Medical electronic system control cabinet, display screen shell, etc.
● Rail transit and traffic management system
Signal control box, traffic monitoring system cabinet.
Xinyang provides customized structure design according to industry requirements, so that Electrical Cabinet Metal Sheet can better adapt to the use environment and product performance requirements.
|
Material |
Cold rolled steel sheet (SPCC), galvanized sheet (SECC), stainless steel 304/316, aluminum sheet |
|
Thickness range |
0.8mm / 1.0mm / 1.2mm / 1.5mm / 2.0mm / 3.0mm Customizable |
|
Appearance color |
RAL standard color, gray, dark gray, black commonly used |
|
Protection level |
IP20/ IP54 /IP55/ IP65 (customized according to design) |
|
Surface treatment |
Powder coating, wire drawing stainless steel, electroplating, anodizing |
|
Dimension range |
According to customer drawings; support large cabinets, outdoor boxes, independent cabinets |
|
Structural configuration |
Door panels, bases, rings, mounting plates, stiffeners, vents, etc. |
|
Processing technology |
Laser cutting, CNC stamping, bending, welding, riveting, spraying |
1. Advanced sheet metal equipment
Amada numeric control punch
AMADA CNC bending machine
Laser cutting machine (high speed and high precision)
Carbon dioxide welding/spot welding equipment
Automatic spraying line to ensure uniform and wear-resistant surface
2. Strict Quality Control
Full size inspection
Surface Adhesion Test
Screw Strength Test
Degrees of protection test (as required)
3. Efficient production teams
50+ Technicians
Years of experience in sheet metal processing
24-hour fast proofing capability
4. Global agency recognition
From Korea, China, Southeast Asia, Europe, multinational customers long-term order cooperation.
● Real China Factory (China Manufacturer & Factory)
6000 square meters area, 100+ professional processing equipment, accept OEM/ODM orders.
● Support to customize drawings and samples
Structural optimization suggestions can be provided to improve product quality and strength.
● Stable quality and reliable delivery
Strictly follow the "quality first, delivery on time" production management.
● Rich industry experience
Years of service in the power, communications, medical, automation industries.
● Low price competitive
The manufacturing cost can be controlled, which has more advantages than the peers.
1. What material is Electrical Cabinet Sheet Metal available?
We provide cold-rolled steel sheet, galvanized sheet, stainless steel 304/316, aluminum plate and other materials, according to the environment, anti-corrosion grade to choose the most suitable material.
2. Is custom size and construction supported?
Yes, sir.Customers can provide 2D/3D drawings, we can according to the drawing processing, can also provide structural optimization scheme.
3. What is the protection level?
Indoor cabinet put oneself in another's position is common for IP54, outdoor cabinet can do IP55 or IP65 according to the demand.
4. How to ensure quality?
From material selection, processing, welding to painting, there are strict inspection procedures to ensure that every product meets the requirements of international customers.
Provide drawings or samples
Engineers evaluate feasibility and offer
Sample confirmation
Volume production
Quality restriction
Packaging shipment (can be packaged according to export requirements)
Case Study
Communication room project: develop communication switch cabinet shell for Korean customers, stable supply in batches for more than five years.
Medical equipment control cabinet: customized high-precision structure sheet metal for domestic medical brands to meet high cleanliness requirements.
Outdoor distribution box project: corrosion resistant coating is adopted to adapt to coastal high salt environment.
These success stories demonstrate the strength of SINYON in Electrical Cabinet Sheet Metal machining.
Choose Xinyang to make the power cabinet sheet metal more professional and reliable
As an experienced Electrical Cabinet Metal Sheet China Manufacturer & Supplier, Sunyoung always insists on quality, technology and service.Whether it is functional structure, complex part processing, surface treatment, or complete cabinet manufacturing, we can provide high-standard, high-stability sheet metal solutions.
Welcome global customer consultation customization, let us help your products quickly put into the market, enhance competitiveness.
