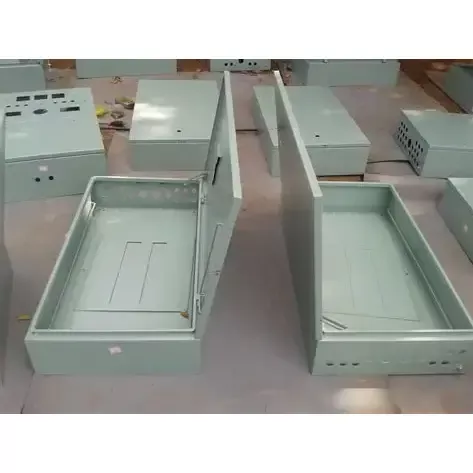

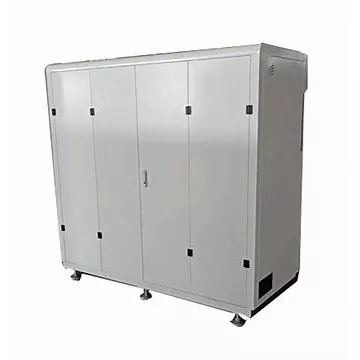

Power Cabinet Sheet Metal Processing refers to the customized processing of power cabinet shell, electric cabinet cabinet body and power distribution cabinet structural parts through laser cutting, CNC stamping, bending, welding, spraying and other full-process sheet metal manufacturing processes, so as to meet the following requirements:
mechanical strength requirements
Corrosion and environmental resistance
electrical safety standard
Heat dissipation and ventilation design
installation compatibility
Such sheet metal parts are usually used in power systems, automation industrial control systems, new energy equipment, communication networks, data centers and other scenarios, belonging to high-precision, high-reliability industrial manufacturing products.
1. Complete sheet metal machining equipment chain
Amada numeric control punch
High power laser cutting machine
CNC bending machine (Computer Numeric Control bending machine)
automatic welding equipment
automatic spraying line
Automatic silk screen production line
These devices ensure that we meet high standards in terms of structural accuracy, machining efficiency and batch stability.
2. Experienced technical team
Multiple sheet metal engineers with more than 10 years of experience
On-site process optimization capability
Familiar with domestic and foreign standards for power cabinets (GB, IEC, etc.)
3. A complete quality control system
First article confirmation of the whole process
Three-coordinate precision detection
Surface coating adhesion testing
Structural Strength Verification
Meet the IP, strength and corrosion resistance requirements of the electrical control cabinet
4. Brand recognition
Long-term customers include:
Korea TOVIS
Beijing Lihua Laikang
China Telecom
Open Biomedical
This fully demonstrates our Power Cabinet Sheet Metal Processing capabilities and consistent quality performance.
Core Function Advantages
1. Functional advantage
(1) Strong and durable structure
Cold rolled steel/stainless steel/aluminum, impact and vibration resistant
High strength welding process ensures reliable connection
(2) Excellent protective performance
IP42 /IP 54/ IP55 customization
The sealing strip is installed accurately to ensure dust and water resistance.
(3) Surface anti-corrosion treatment
Automatic spraying line ensures uniform spraying
Salt fog test for complex environments
(4) Good heat dissipation design
Custom ventilation holes, cooling windows, fan mounting positions
Support installation of cooling module and filter
(5) Compatible with a variety of power and industrial control system installation
DIN rail support
Multiple drilling methods (laser drilling, countersinking, tapping)
Modular structure, flexible use according to system upgrade
1. Electric power transmission and distribution system
Provide stable and reliable structural protection for transformer station, power base station and electrical control room.
2. Industrial automation and control systems
Meet the installation requirements of PLC systems, industrial machines and robot controllers.
3. Communications and Network Control Center
Power distribution cabinet, communication electric control cabinet, UPS electric cabinet, etc.
4. Medical equipment
Equipment electric cabinet shell, meet the requirements of medical use environment.
5. New energy systems
Charging pile control cabinet, photovoltaic inverter box, battery management system, energy storage shell, etc.
Material Options
|
Material Types |
Thickness range |
Features |
|
Cold-rolled steel sheet (SPCC) |
0.8–3.0mm |
Low cost, high strength, excellent processing performance |
|
Stainless steel (SUS304/SUS316) |
1.0–3.0mm |
High corrosion resistance, strong outdoor applicability |
|
Aluminum sheet (AL 5052/6061) |
1.5–4.0mm |
Lightweight, good heat dissipation, corrosion resistant |
|
Galvanized sheet |
1.0–2.5mm |
Strong rust prevention, high cost performance |
Surface treatment
|
Process |
Description |
|
Electrostatic spraying |
Indoor and outdoor spraying options available, multiple custom colors |
|
Anodizing |
Specifically for aluminum parts, enhances surface hardness and appearance |
|
Wire drawing |
Strong metallic texture |
|
Screen printing / Laser engraving |
Customizable logo, serial number, and panel markings |
|
Process Items |
Description |
|
Laser Cutting |
High-precision cutting, error less than ±0.1mm |
|
CNC Bending |
Multiple bends, high angle consistency |
|
Argon Arc Welding / MIG Welding |
Beautiful and strong welds |
|
Spot Welding |
Suitable for rapid assembly of thin plates |
|
Precision Grinding |
Ensures a smooth, burr-free appearanc |
1. Can it be customized according to customer drawings?
Very good.Xinyang provides to map processing/sample customization/ OEM / ODM whole process services.
2. How to ensure the machining accuracy?
Brand equipment used: AMADA CNC punching machine, CNC bending machine
three coordinate measuring instrument
Complete QC Process
Ensure that every sheet metal part of the power cabinet meets the quality standard.
3. Can I provide samples?
Sample confirmation is available.After the sample is passed, the batch production is carried out to ensure that the structure and function fully meet the requirements.
Why do customers choose Xinyang?
1. Strong supply chain capabilities from China Manufacturers
Dongguan-China's most concentrated sheet metal processing industrial area, supply chain mature, complete materials, high efficiency.
2. Factory Direct cost advantage
No middleman, more competitive price, controllable delivery.
3. Complete service chain (design + machining + surface treatment + assembly)
Save customer procurement communication costs and improve time-to-market.
4. High international market recognition
Long-term cooperation with many overseas enterprises is the most direct affirmation of our professional ability.
As a well-known sheet metal parts China Manufacturer, Supplier and Factory_Dongguan city Xinyang Industry Co., Ltd., relying on more than ten years of industry experience, 6000㎡ production base and 100+ sets of professional processing equipment, we have long provided high-performance sheet metal solutions for industrial control, electric power, communication, medical treatment and other industries.Our Power Cabinet Sheet Metal Processing service has been recognized by many domestic and foreign brands such as TOVIS, China Telecom and Kaikai Medical.
Our Power Cabinet Sheet Metal Processing services help our customers address the following core issues:
How to make the electronic control system safer?
How to improve the service life of power cabinet?
How do I keep running smoothly in a complex environment?
How to improve the competitiveness of products in the market through professional manufacturing?
with advance equipment, high standard process and many year of industry experience, we can not only meet that requirements of customers for the structural strength, appearance and function of the power cabinet, but also help customer gain higher trust in the international market through products with high stability.
If you are looking for a professional Power Cabinet Sheet Metal Processing service provider, Shineyoung will be worthy of long-term cooperation with China's manufacturing partners.
