Self Service Terminal LCD Display Sheet Metal Enclosure

Xinyang serves as a reliable OEM Exporter and Manufacturer for the Self Service Terminal LCD Display Sheet Metal Enclosure, delivering ruggedized, modular metallic housing solutions tailored for interactive public kiosks.

Tamper-Resistant Engineering for Unattended Commercial Terminals

Publicly accessible kiosks—such as automated payment machines, ticketing booths, retail self-checkouts, and wayfinding stations—face heavy daily wear, accidental impacts, and security threats in high-traffic environments. Standard display brackets often lack the mechanical strength needed to protect internal display modules from forced entry, vandalism, or structural distortion caused by continuous user interaction.

To secure sensitive hardware in unattended public spaces, Xinyang produces the Self Service Terminal LCD Display Sheet Metal Enclosure with reinforced edge structures, concealed hinges, and lockable rear access panels. Fabricated from premium SPCC cold-rolled steel plates and high-grade aluminum sheets, this enclosure distributes surface forces evenly across the chassis frame. This heavy-duty design shields delicate LCD glass, touch sensors, and motherboard components against physical abuse while maintaining structural stability over years of continuous operation.

Integrated Modular Layout and Rapid Maintenance Access

Operational downtime in commercial terminals directly leads to lost revenue. Our structural engineers design every Self Service Terminal LCD Display Sheet Metal Enclosure around a modular internal architecture, allowing field service technicians to conduct routine maintenance, cable management, or panel replacements with minimal effort.

Structural Architecture & System Compatibility

• Quick-Access Rear & Front Panels: Engineered with precision-punched mounting studs, sliding bracket slots, and captive fasteners that streamline screen mounting and reduce onsite assembly time.
• Optimized Internal Layouts: Dedicated internal sub-assemblies for power supply brackets, controller mainboards, thermal exhaust fans, and card reader/receipt printer mounting cutouts.
• Standardized Mounting Interface: Universal VESA patterns (75×75mm, 100×100mm, 200×200mm) combined with adjustable depth brackets to accommodate various touch panel thicknesses and full-lamination displays.

Comprehensive Physical Parameters & Manufacturing Tolerances

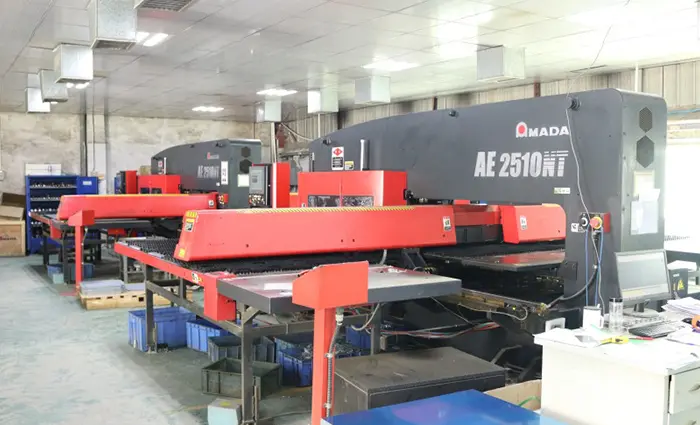

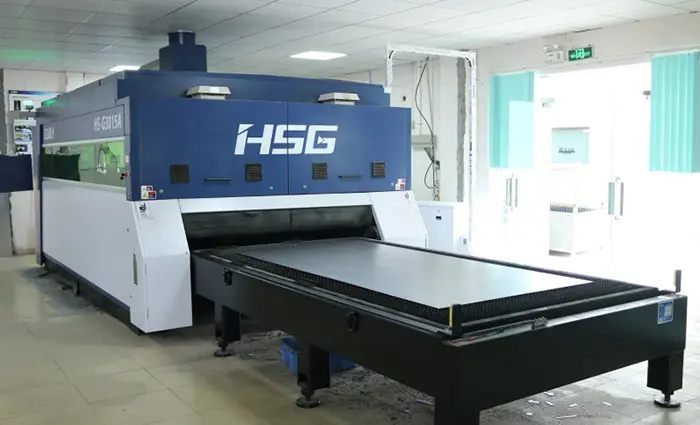

Xinyang utilizes Japanese AMADA CNC punching presses, high-speed fiber laser cutters, and automated bending cells to deliver precise metallic components that align perfectly with client drawings.

Thermal Airflow Channels and Outdoor Weatherproofing

Interactive self-service kiosks generate significant heat from display backlights, embedded PCs, and power transformers, particularly when deployed in enclosed or outdoor environments. Xinyang incorporates passive heat dissipation grids, louvered ventilation slots, and optional mounting provisions for forced-air cooling fans directly into the Self Service Terminal LCD Display Sheet Metal Enclosure. These design features prevent heat buildup around internal electronics without exposing interior components to dust and moisture.

For outdoor self-service applications, our automated surface finishing lines apply salt-spray resistant outdoor powder coatings and anti-corrosion pretreatments. All surface treatments meet strict RoHS and REACH environmental guidelines, ensuring that the metal housing resists rusting, UV fading, and chemical degradation under challenging atmospheric conditions.

Key Markets Utilizing Xinyang Kiosk Enclosures

By blending robust physical protection with flexible structural customization, Xinyang’s sheet metal products are utilized across major self-service industries worldwide:

1. Retail & Hospitality Self-Checkout: Interactive ordering kiosks, point-of-sale (POS) terminal housings, and hotel check-in screens.
2. Transportation & Ticketing Terminals: Bus/train station schedule monitors, automated ticket vending frames, and parking payment kiosks.
3. Banking & Financial Services: ATM fascia frames, bill-payment terminal covers, and account management kiosk housings.
4. Healthcare & Civic Information: Hospital patient registration terminals, queue management displays, and municipal wayfinding kiosks.

Engineering & Manufacturing Advantages for High-Volume Kiosk Projects

Scaling custom kiosk hardware requires high-repeatability sheet metal fabrication that ensures uniform component alignment across multi-thousand-unit production runs. Dongguan Xinyang Industrial combines fully automated Japanese AMADA CNC punching and bending infrastructure with deep Tier-1 supply integration in Dongguan, China.

• Precision Batch Consistency: Operating across 6,000㎡ of ISO9001-certified floor space with 100+ precision machines, we eliminate batch-to-batch dimensional variance. This ensures that every front fascia, side door, and peripheral mounting plate fits seamlessly during end-assembly.
• Streamlined Rapid Prototyping: Our structural engineers perform dynamic DFM (Design for Manufacturability) analysis on your STEP, DXF, or DWG files—or execute physical sample reverse engineering—to convert initial concepts into production-ready chassis within days.
• Verified Tier-1 Supply Quality: From mill-certified raw steel to environmentally compliant RoHS/REACH powder coatings, every enclosure follows strict traceability protocols trusted by global tech enterprise leaders like South Korea's TOVIS, China Telecom, and Beijing Lihua Laikang.

Technical Questions & Procurement Clarifications

How does Xinyang handle custom cutout modifications for various kiosk peripherals?

Every Self Service Terminal LCD Display Sheet Metal Enclosure is built to order. We customize cutouts for barcode scanners, thermal printers, IC card readers, camera modules, and bill acceptors based strictly on your CAD assembly drawings.

What measures are taken to protect custom painted surfaces during sea freight?

We utilize a multi-tier protective packaging system for export shipments. Each unit is wrapped in scratch-preventing protective film, padded with shock-absorbing EPE foam, and packed into reinforced corrugated cartons or heavy-duty wooden export pallets to prevent transit damage.

Can Xinyang accommodate low-volume initial sample orders before mass production?

Yes, our prototyping workflow allows for short-run sample validation. Kiosk OEMs can test and evaluate the physical enclosure, surface finish, and internal mounting alignment before committing to full-scale batch manufacturing.
