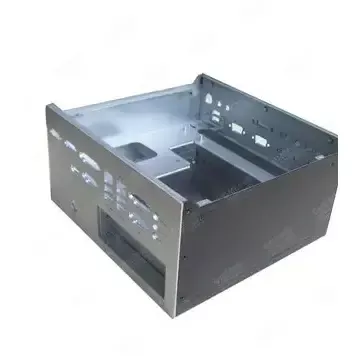

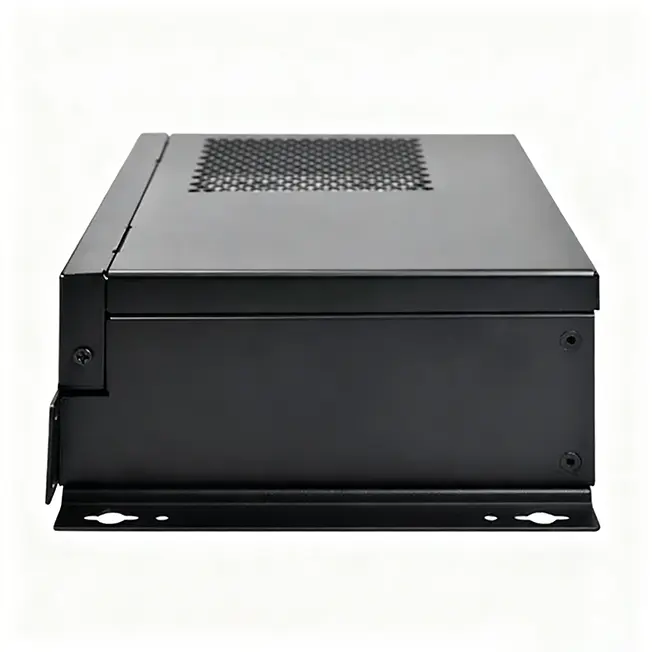

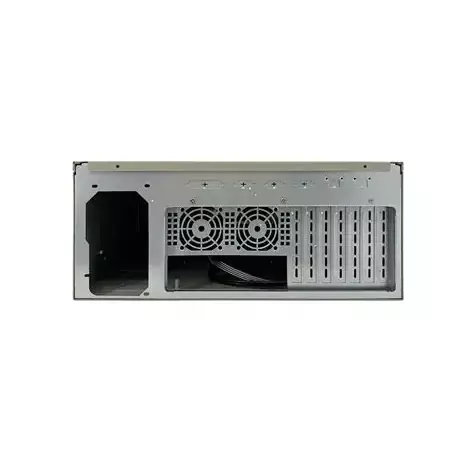

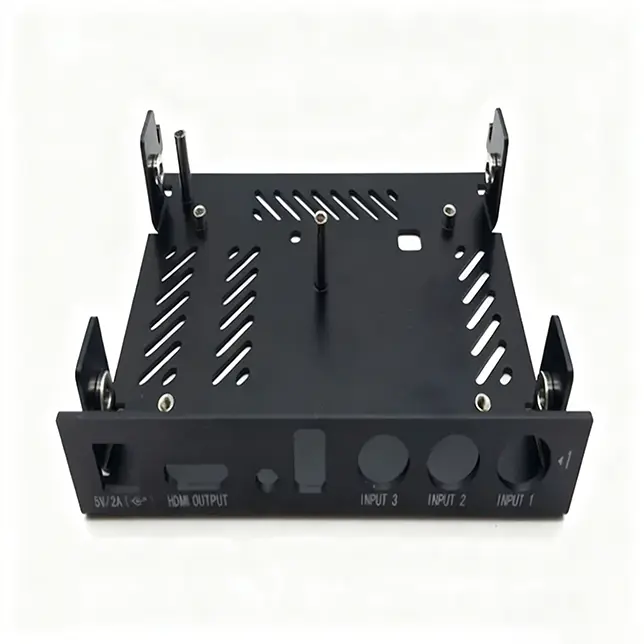

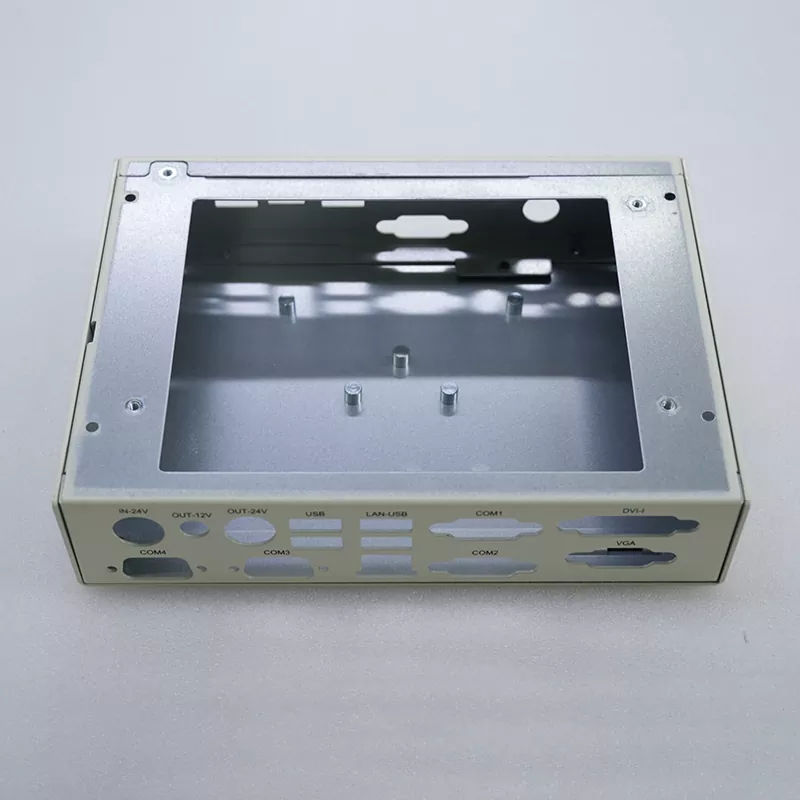

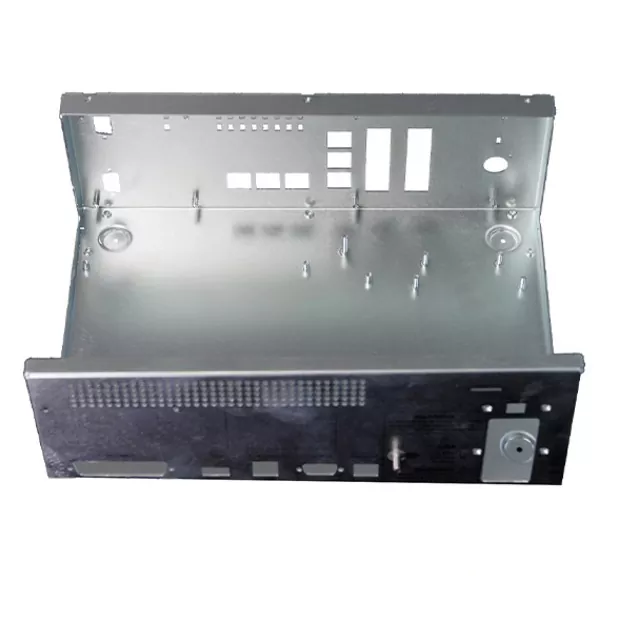

Xinyang Industrial is a professional Industrial Control Chassis Sheet Metal Manufacturing factory from China, focusing on providing high-precision and high-reliability industrial control chassis sheet metal parts for global industrial automation, communication equipment, medical electronics, intelligent terminals and other fields.
In an industrial environment, the chassis is not just a shell, but a critical part of the stable operation of the protection equipment.Xinyang's sheet metal manufacturing technology enables industrial control cabinets to have the following characteristics:
Functional value (stability, safety, durability)
1. High strength structural design
Using high quality cold rolled steel plate, galvanized steel plate, aluminum plate and other materials, through AMADA CNC punching, CNC bending, laser cutting to achieve high precision structure, improve extrusion resistance and impact resistance.
2. excellent corrosion resistance
Equipped with automatic spraying line, using environmentally friendly powder spraying (epoxy/polyester/mixed powder), improve strong corrosion resistance and environmental adaptability.
3. Strong structural stability
The internal layout meets the standard installation requirements of industrial controllers, motherboards, power supply modules, fans, and ports to improve the reliability of equipment operation.
4. Good thermal design
Scientific duct, vent layout, optional fan position design ensure stability in dust, high temperature or continuous operation environment.
Industrial Control Chassis sheet metal parts are widely used in:
Automated production equipment
Industrial robot control system
Communication and network equipment chassis
Medical testing equipment housing
Intelligent terminal control host

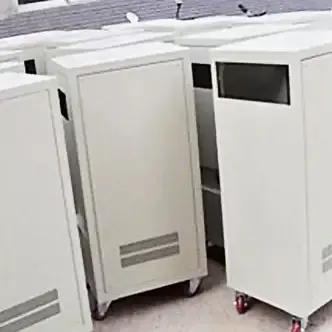

Monitoring system control cabinet
LED display equipment
Rail transit control system
Whether it is a high dust factory workshop, outdoor control environment, communication room, or industrial laboratory, Xinyang can provide high adaptability of sheet metal industrial control chassis custom manufacturing.
1. Common Material Specifications
|
Material Types |
Thickness range |
Features |
|
Cold-rolled steel sheet SPCC |
0.8mm–2.5mm |
High strength, moderate price |
|
Aluminum sheet AL |
1.0mm–3.0mm |
Fast heat conduction, lightweight |
|
Galvanized steel sheet SECC |
0.8mm–2.0mm |
Suitable for electrical control cabinets and applications requiring oxidation resistance |
|
Stainless steel SUS304/201 |
0.8mm–2.0mm |
Strong corrosion resistance, suitable for medical and food industries |
2. Machining Accuracy
|
Processing Services |
Processing Equipment |
Accuracy range |
|
Laser cutting |
Laser cutting machine |
±0.1mm |
|
CNC punching |
AMADA CNC punching machine |
±0.1mm |
|
Bending |
CNC bending machine |
±0.2mm |
|
Surface coating |
Automatic powder coating line |
Thickness: 60–120μm |
3. Structural Configuration Options
Structural Configuration Options

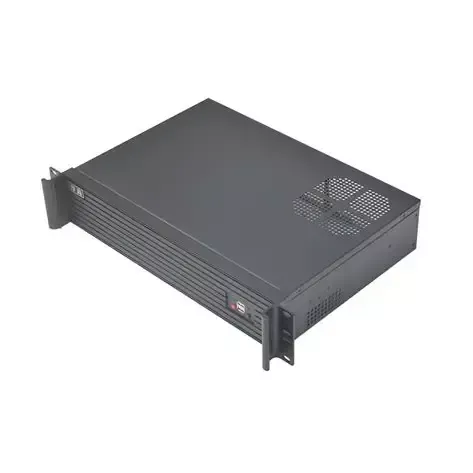

Standard rack construction/custom construction
Multiple motherboard mounting positions (Mini-ITX, ATX, MicroATX)
Customizable PCI slots, dust filters, handles, display windows
Various ventilation methods: heat dissipation holes, honeycomb holes, fan positions
Power compartment, light plate or bracket structure can be customized
Compatible with 2.5 / 3.5 inch hard disk
A variety of locks, anti-disassembly structure optional
4.Surface treatment methods
|
Environmentally friendly powder coating |
Available in multiple colors, highly corrosion-resistant |
|
Anodizing |
High-end surface finish for aluminum alloy enclosures |
|
Brushed stainless steel |
Suitable for equipment appearance display |
|
Electroplating, galvanizing |
Higher rust resistance rating |
1. One-stop sheet metal manufacturing capability (R & D + production + technical support)
Xinyang not only provides manufacturing, but also provides technical support such as structure optimization, heat dissipation design, installation hole layout optimization, etc. to help customers reduce design errors and rework.
2. High quality production line and equipment, high consistency production
Own production lines include:
Amada numeric control punch
CNC bending machine (Computer Numeric Control bending machine)
laser cutting machine
multiple punch
Automatic powder spraying line
Silk screen production line
Ensure the consistency of batch order structure and reduce customer assembly defect rate.
3. For a number of international and domestic well-known enterprises long-term supply
Xinyang products have been recognized by customers in many industries:
Korea TOVIS
Beijing Lihua Laikang
China Telecom
Open biomedical treatment, etc.
Have long-term stable supply experience.
4. Strict quality control
The company strictly implements the process inspection:
Laser/Punch First Article Validation
Bend angle detection
bond testing
Surface coating adhesion testing
Finished product structure and function inspection
Let every chassis meet the requirements of industrial environments.
1. How about the cooling effect of the industrial control box?
Xinyang designs the air duct according to the equipment power and internal structure. The position of the cooling hole and the fan position can be customized to ensure that the temperature is kept in a reasonable range.
2. Can it be customized according to customer drawings?
Support drawing processing, sample customization, but also to provide structural optimization services.
3. Does manufacturing accuracy meet international customer requirements?
Using high-end equipment, the accuracy can be controlled within ±0.1 - 0.2mm, which is higher than the ±0.5mm accuracy of most factories.
Customer demand communication, quotation
Engineer Structure Evaluation and Optimization
Laser cutting/CNC stamping
Bending and welding
Grinding, deburring
Automatic powder spraying, silk screen printing
Assembly and testing
Packaging and Delivery
Strict quality control is carried out at every step to ensure that the shipped products meet international customer standards.
Application Industry Case
Automation Equipment Factory Case
Customers need control cabinets with stable structure and strong earthquake resistance. Xinyang helps customers reduce assembly time by 20% through rib design + optimized installation hole position.
Communication Equipment Factory Case
Network switching equipment has high requirements for heat dissipation, and Xinyang improves the air duct structure to reduce the temperature of the equipment by 7 - 10℃.
Medical Equipment Case
Adopt stainless steel + anodizing process, surface corrosion resistance, easy to clean, more in line with medical standards.
These cases have significantly improved the overall competitiveness of customer products.
Choose Xinyang for higher reliability in Industrial Control Chassis Sheet Metal Manufacturing.
Xinyang, a sheet metal manufacturing factory from China, can not only provide high-consistency and high-precision industrial control boxes, but also provide professional design suggestions according to different application scenarios.For B2B industrial equipment manufacturers who need stability, durability and high size accuracy, Xinyang is the ideal partner.
We insist:
quality first
delivery on time
continuous improvement
Focus on customer needs
Welcome enterprises from all over the world to negotiate cooperation, Xinyang is willing to become your reliable long-term cooperative manufacturer in China.
