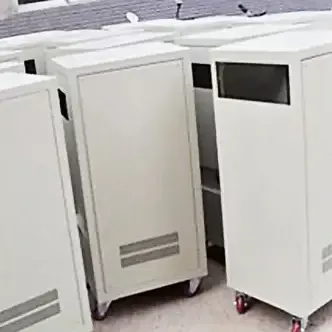

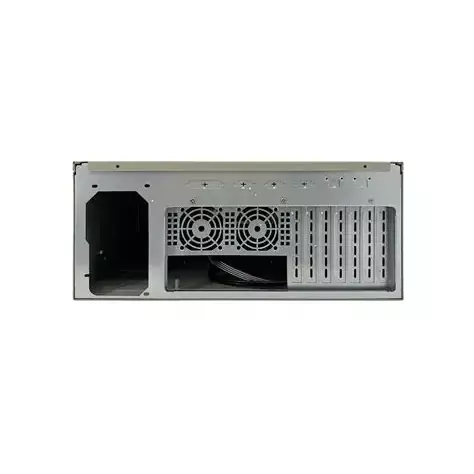

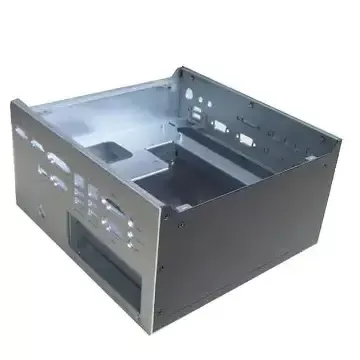

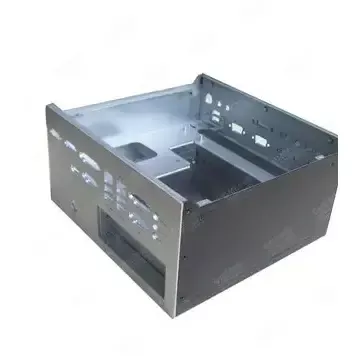

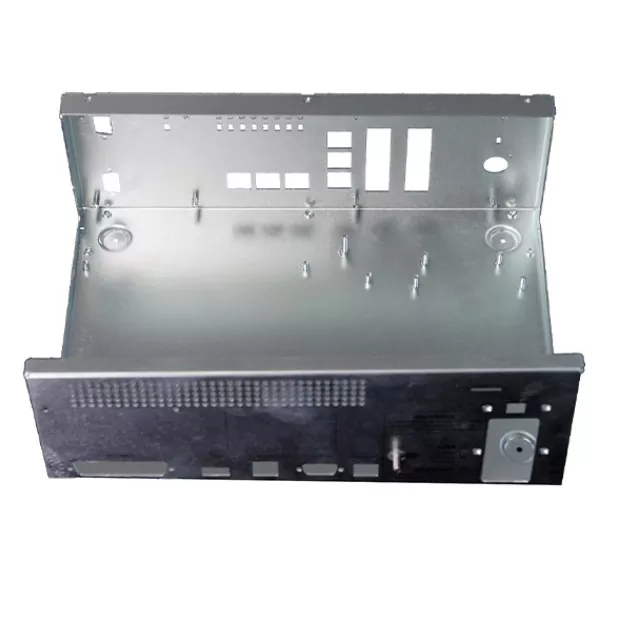

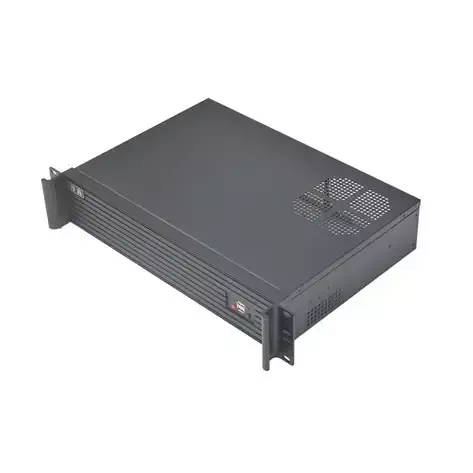

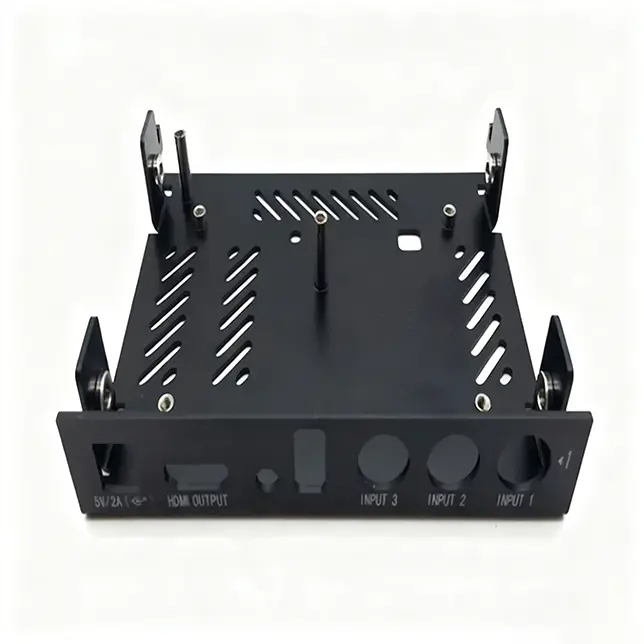

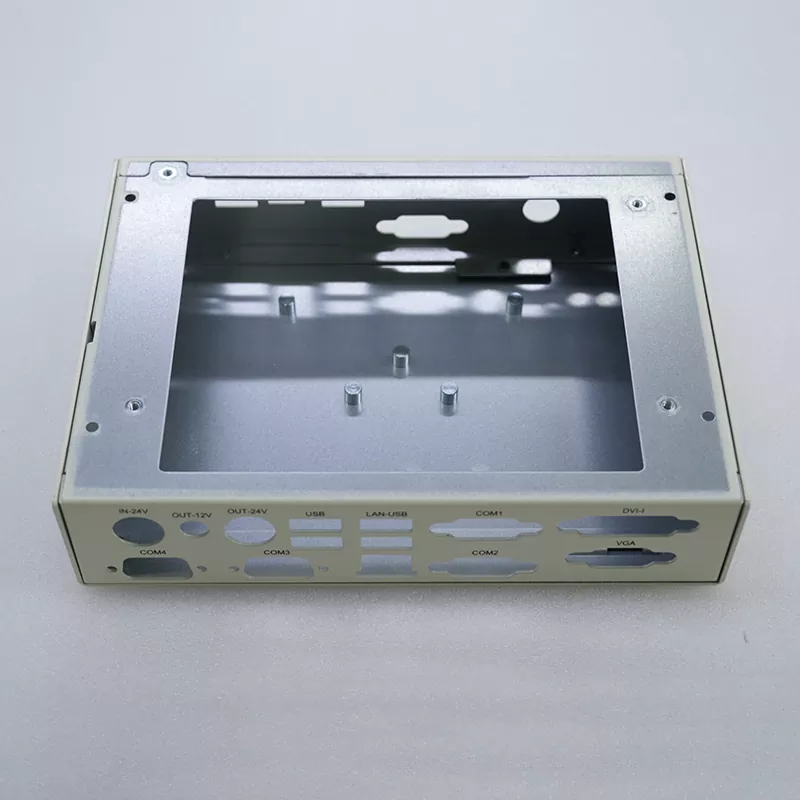

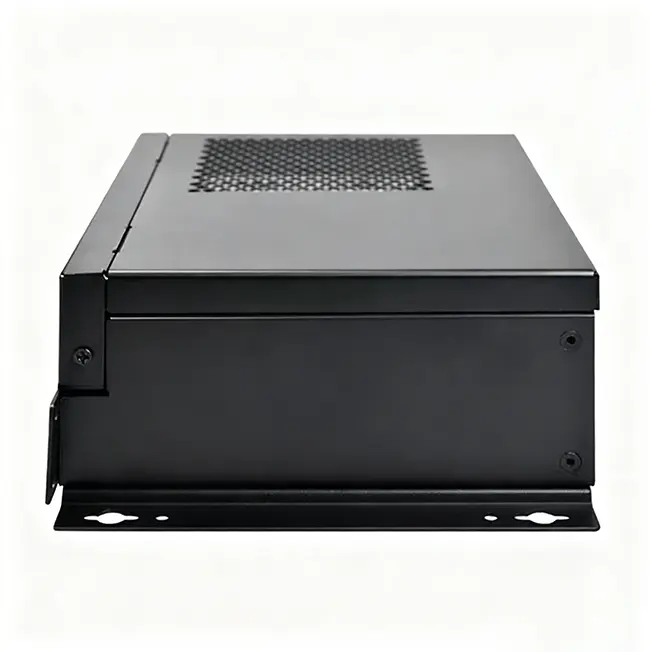

Industrial Control Cabinet Sheet Metal

Core function

1. Equipment protection function

The high-quality Industrial Control Cabinet Sheet Metal is the first line of safety for industrial control systems.Xinyang uses high-strength cold-rolled steel sheet, galvanized sheet, stainless steel and other materials to build a sturdy cabinet to achieve:

Strong impact resistance to prevent damage to the device due to external pressure

Corrosion resistance, moisture resistance, rust resistance, suitable for wet or acid and alkali light corrosion environment

Fully enclosed structure design, effective dust, oil, insects

Strong current and weak current isolation design, reduce electrical interference and risk

These functions ensure that the industrial control system remains stable and reliable in long-term operation.

2. Thermal and airflow management

In many devices, overheating is one of the main causes of failure.The sheet metal of industrial control cabinet of Xinyang is passed through:

Reasonable heat dissipation hole arrangement

Built-in air duct design

Supports installation of fans, coolers or filters

optimization with thermal convection path

Ensure the temperature stability in the cabinet, and ensure the operation life of key components such as PLC, frequency converter, switch and power supply module.

3. Modular Installation Compatibility

The sheet metal of industrial control cabinet of Xinyang complies with the mainstream standards of the industry, and supports:

DIN rail

19 "Mounting Configuration

Upper and lower outlet holes

Standard or custom cable management tray

Design of interchangeable cabinet door direction

Reserved lock installation hole

Achieve multi-brand, multi-specification industrial control equipment compatible, so that customers use more convenient, more efficient installation.

Application scenarios

Industrial Control Cabinet Sheet Metal of high standard is widely used in many industrial fields, Xinyang industrial control cabinet can be applied to:

1. Automatic production line

PLC control system

Robot drive cabinet

servosystem

automatic pow distribution unit

The invention solves the problems that the system stability is improved, the wiring is more standard, and the safety level is higher.

2. Communications and Networking

Industrial control exchange shell

Network transmission box

Server edge control cabinet

Value: Robust structure, strong anti-interference ability and improved continuous operation ability.

3. Medical Devices and Laboratory Environments

Xinyang has provided supporting sheet metal housings for domestic and foreign medical brands, including:

Medical control cabinet

Monitor device housing

Protective box for precision instrument

Advantages: surface spray environmental protection, no smell, resistant to cleaning agents.

4. Electric power industry

Distribution cabinet metal plate

High and low voltage control cabinet shell

Solar inversion control cabinet

Effect: Supports harsh environment, such as outdoor, humid, dusty areas.

5. Display System and Industrial LCD Housing

Xinyang has been supplying customers in Korea, Japan and Europe and America for a long time in the field of LCD display shell and outdoor monitoring display box. The industrial control sheet metal shell has the characteristics of waterproof, dustproof and ultraviolet resistance.

The results of using Xinyang industrial control cabinet sheet metal

Choosing Xinyang Industrial Control Cabinet Sheet Metal can help customers achieve quantifiable improvements in product, delivery, cost, and market competitiveness.

◆Outcome 1: Improved equipment stability and longevity

More efficient cooling

Better impact resistance

Material is more resistant to corrosion

the structure is more durable and doe not deform

Reduced equipment failure rates and lower maintenance costs.

◆ Outcome 2: Improved brand perception and product feel

The Xinyang stand-alone spray line enables:

Surfacing

Strong adhesion

No peeling, no paint

Can do a variety of colors, textures

So that that product grade of the whole machine is high, and the market competitiveness is improved.

◆Outcome 3: Reduced R & D, production and delivery times

Xinyang provides customers with:

Fast proofing

One-to-one technical support

Customized drawings and samples

Suggestions on optimization of specialty structure

Customers can get to market faster and take advantage.

◆Outcome 4: Support for OEM/ODM, increased supply chain flexibility

As a mature sheet metal manufacturer & factory of industrial control cabinet in China, Xinyang can flexibly provide batch manufacturing capability to make customers 'production plan more stable.

Product Specifications

● Available Materials

● Surface treatment methods

Environmental protection electrostatic powder coating (powder coating)

wire drawing process

anodize

galvanize

Silk screen/laser engraving

Special color customization (according to brand requirements)

● Thickness range

0.8 mm

1.0 mm

1.2 mm

1.5 mm

2.0 mm (optional for heavy duty construction)

Industrial control cabinet structural parameters

● Production Equipment Support:

AMADA CNC punching machine

Laser cutting machine

CNC bending machine

Automatic welding equipment

Automatic powder coating production line

Screen printing line

FAQ

1. Can it be customized to customer drawings?

Very good.Xinyang supports drawing processing, sample customization, and can also provide structural optimization design.

2. Can do corrosion-resistant, waterproof level of high industrial control cabinet?

Very good.IP54 /IP55/ IP65 is available on request for outdoor use.

3. Are you manufacturers or trading companies?

Xinyang is a local industrial control sheet metal manufacturer and factory in China, with a production base of 6000㎡ and 100+ equipment.

4. How to ensure product quality?

raw material inspection

Process inspection

size detection

Surface quality inspection

Assembly Inspection (if required)

Products by South Korea TOVIS, China Telecom, Levi Lai Kang and other brands have long been used.

Why choose Xinyang?

★ 1. More than 10 years of manufacturing experience, professional and trustworthy

Since its establishment in 2016, Xinyang has focused on sheet metal processing and has become a long-term partner of many overseas customers.

★ 2. Large-scale factory with complete equipment

6000 m2 factory building

100+ processing equipment

automatic spraying line

Ensure stable delivery and high volume capacity.

★ 3. International brand recognition

Long-term supply of products to:

Korea TOVIS

China Telecom

Medical equipment manufacturers

Automation equipment manufacturers

The quality is proven by the market.

★ 4. Strong customization capability

Support:

OEM/ODM

Structural Design Support

more surface treatments

Multiple material options

high-precision machining

Differentiate your customers "products in the marketplace.

★ 5. competitively priced

As a manufacturer and supplier of sheet metal for industrial control cabinets in China, we reduce intermediate links and provide customers with better prices.

Xinyang is committed to providing high-quality, reliable, and highly customizable Industrial Control Cabinet Sheet Metal products to customers worldwide.Whether you're in the automation, communications, power, medical or industrial equipment manufacturing industries, we can provide safe, efficient and durable housing and construction solutions for your equipment to help you compete and accelerate your market presence.

If you need custom drawings, quotes or proofing services, we are always ready to provide professional support.
