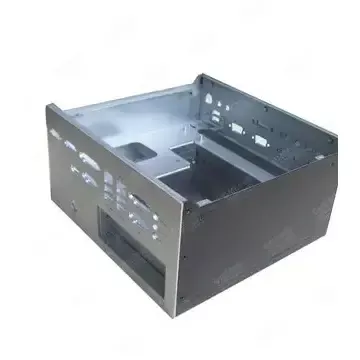

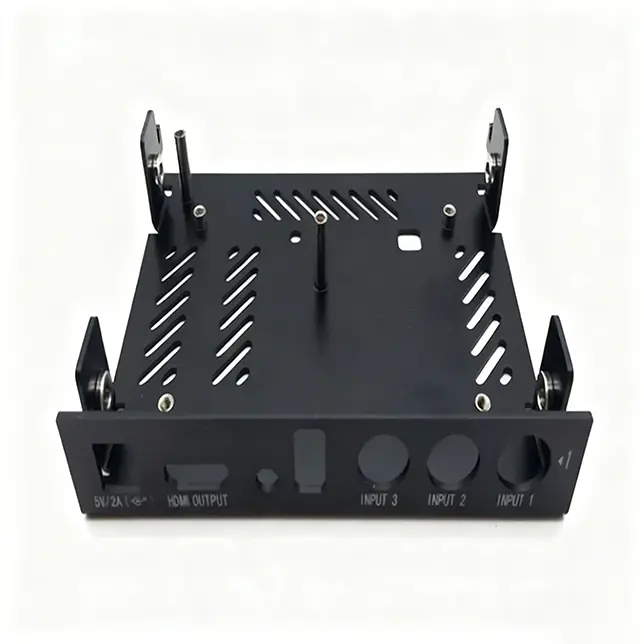

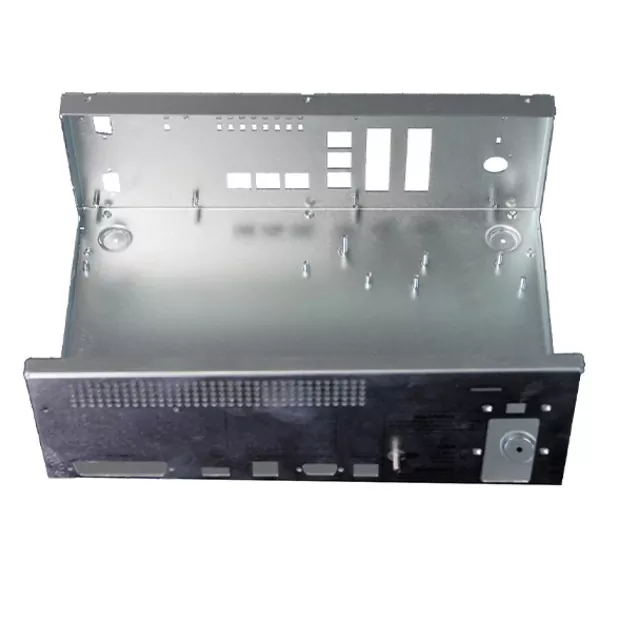

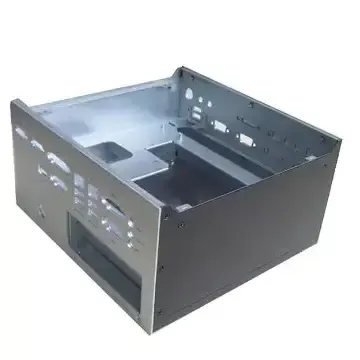

With the development of industrial equipment towards intelligence, high density and high power, traditional cabinets have been unable to meet the multiple requirements of industrial environments.Precision Industrial Control Chassis Sheet Metal ensures stable operation in harsh environments, with core values including:
1. High structural strength, strong protection ability
Excellent extrusion resistance, can withstand external impact during transportation and long-term installation
High-strength cold-rolled steel or aluminum to ensure the overall rigidity of the chassis
Multi-point welded structures enhance frame stability
2. Excellent heat dissipation and electromagnetic shielding performance
Scientific design of cooling holes, air ducts and fan installation positions
Can be used with EMC shielding structure to prevent signal interference
Surface coating improves corrosion resistance and life
3. Meet industrial dust and dirt resistance
IP42, IP54, IP65 levels can be achieved according to the application
Seal strip and precision bending process effectively block dust
4. Flexible customization to adapt to a variety of industrial scenarios

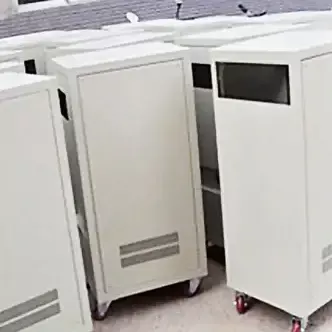

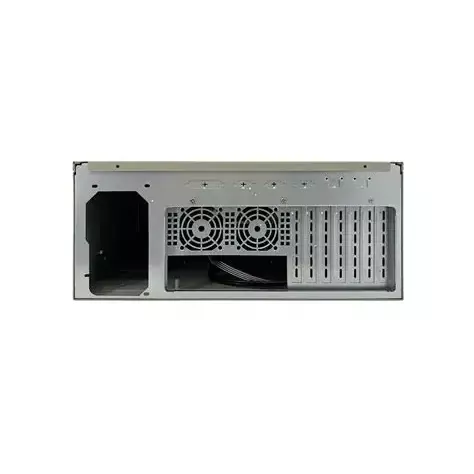

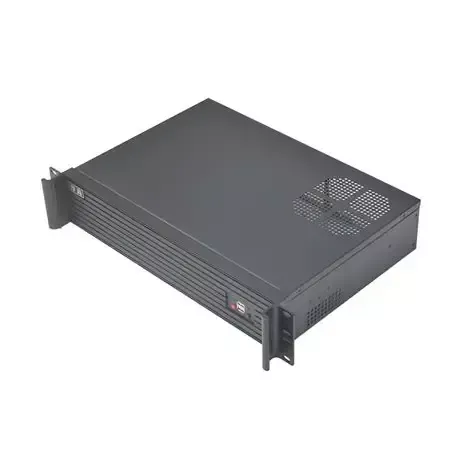

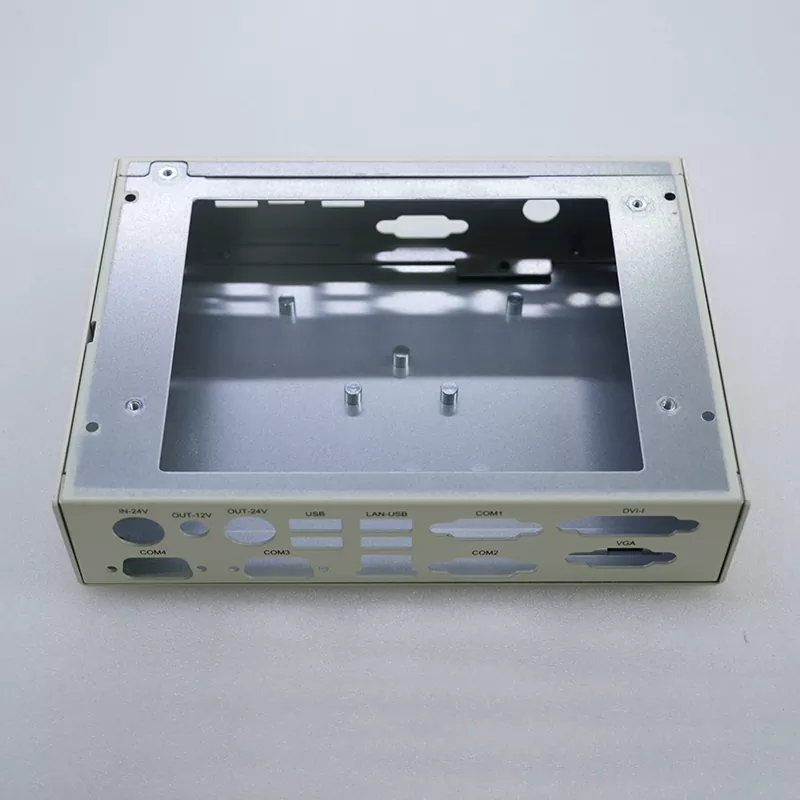

Industrial PC box, switch protective shell, LCD display shell, electric control cabinet, etc.
Support OEM/ODM, sample processing, drawing customization
Modular design for easy maintenance and expansion
The industrial control box made by precision sheet metal technology can significantly improve the operation stability, service life and maintenance convenience of industrial equipment, and help customers reduce system risks and operation and maintenance costs.
1. Real strength Factory from China
6000㎡ Own production plant
Automated production lines ensure consistency
Short production cycle, support urgent projects
Full process control, cost more competitive
2. Full process precision sheet metal manufacturing capability
We have a complete set of capabilities from R & D design, process review, sample manufacturing to mass production, including:
CNC punching
Laser cutting
CNC bending
Precision welding (argon arc welding/spot welding/secondary welding)
Grinding and polishing
Surface treatment (dusting, painting, plating)
Screen printing and assembly
Strict quality standards are followed at every step to ensure that the finished product meets the requirements of industrial-grade use.
3. Strict quality system, factory traceability
Incoming Inspection + Process Inspection + Finished Product Inspection
Tolerance strictly controlled within ±0.1mm
Epoxy powder coating passes salt spray resistance test
Batch traceability and full test report
4. Multi-industry head enterprise long-term cooperation
Xinyang products have been widely used in:
Medical equipment
Communications equipment and switches
Industrial computers and servers
Optoelectronics industry
Energy and Power Control Systems
Functional characteristics
|
Functional Modules |
Detailed Description: |
|
Structural Protection |
Reinforced structural design, capable of withstanding impact, vibration, and heavy pressure |
|
Thermal Management |
Optimized airflow and heat dissipation hole layout to improve equipment operating stability |
|
Electromagnetic Shielding |
Added shielding plates and strips to reduce EMI interference |
|
Corrosion Protection |
Uses environmentally friendly powder coating, forming a protective layer through high-temperature curing |
|
Modular Design |
Configurable with modular front panel, pull-out tray, and expandable interfaces |
|
Customization |
Supports customization of logo, screen printing, structural dimensions, and surface color |
Industrial automatic production line
Used for PLC controller, industrial control host, communication processor and other equipment protection shell.
Outdoor communication equipment
It is designed with high protection grade, and is used for switches, optical fiber communication equipment, etc.
medical instrument enclosure
Provide high cleanliness appearance and precision structure, safe and stable.
Intelligent display terminal
such as an LCD display house and a touch device housing.
Reliability-focused Precision Industrial Control Chassis Sheet Metal is designed to withstand harsh environments such as high temperature, dust, humidity, and electromagnetic interference.
1. Commonly used materials
Cold rolled sheet (SPCC)
Stainless steel (SUS304 / 201)
Aluminum plate (AL5052 / AL6061)
Galvanized sheet (SECC)
2. Finish Options
Epoxy powder spraying (indoor and outdoor optional)
anodize
Wire drawing process
Electrogalvanizing, Electronickel
high temperature baking
3. Product Structure Parameters
|
Sheet metal thickness |
0.8mm - 3.0mm (customizable upon request) |
|
Surface roughness |
Ra 1.6 - 2.0 |
|
Machining tolerance |
±0.1mm |
|
Coating thickness |
60–90 μm |
|
Color |
Full RAL color range supported |
|
Protection rating |
IP42 / IP54 / IP65 customizable |
|
Process options |
Bending, welding, riveting, tapping, flanging, etc. |
1. Can I OEM/ODM?Can you support to map customization?
Fully supported.Xinyang has a professional R & D team, which can carry out structural design, optimization and manufacturing according to customer drawings, samples or requirements, and also provide a complete set of OEM/ODM customized services.
2. Is the surface treatment of the IPC case in accordance with international standards?
Spray powders are environmentally friendly, safe and salt spray tested; colors can be customized according to RAL or Pantone color number.
3. How can I guarantee the quality of Precision Industrial Control Chassis Sheet Metal?
Each product has independent inspection records
Quality tracking in the whole production process
Standard procedures for materials, welding and painting
100% inspection prior to shipment
4. Is the export packaging safe?
All industrial computer boxes are made of environmentally-friendly materials and custom-made shockproof packaging to ensure that they are not damaged during transportation.
By selecting Xinyang's sheet metal solutions for industrial control cabinets, customers will receive:
1. Robust, industrial-grade equipment enclosures
Long-term trouble-free operation, to provide lasting protection for equipment.
2. Reduce maintenance and replacement costs
High-strength materials and corrosion-resistant surface treatments significantly extend service life.
3. Improve equipment performance
Good heat dissipation and structural layout, so that the equipment to maintain optimal operation.
4. Reduce time to market
Automated production and high response speed, help customers to quickly seize the market.
5. More competitive procurement costs
Own factory production, no intermediate links, the price is more advantageous.
Why do customers around the world prefer to choose Xinyang?
China Precision Sheet Metal Manufacturer
More than a decade of industry experience
Long-term cooperation with a number of well-known enterprises
Strict implementation of quality standards
Advanced equipment and controllable delivery date
Strong OEM/ODM customization capabilities
Support small batch, high precision processing
Provide perfect after-sales and technical services
Xinyang has always adhered to the production philosophy of "Quality First, Excellence," and continuously improved the manufacturing capability and technical level of Precision Industrial Control Chassis Sheet Metal.With our professional experience in sheet metal manufacturing, strict quality management system and flexible customization capability, we will provide our customers with high standard and high stability industrial chassis products.
If you are looking for a reliable industrial control box sheet metal Factory, Shin Yang will be a reliable long-term partner.
